Conditions

🏷️ Version 2.0.0+

Warning

The Conditions system is currently experimental and may change at any time.

Be careful when adopting it for production-critical features. Future package updates may require refactoring condition trees, revisiting authoring workflows, or adjusting integration code that depends on the current behavior.

The feature is expected to move toward a more stable shape once Astra Modifiers is released, where Conditions are used extensively. Until then, it is safer to treat the current API and authoring flow as provisional.

Conditions are reusable predicates evaluated against an EvaluationContext. They let you express editor-authored rules such as "run this action only when the holder is below a threshold", "only pass when the payload entity matches the holder", or "only continue when the target has a required tag set".

Unlike GameTags or GameActions, conditions are usually not standalone assets. They are authored inline in [SerializeReference] fields, where you choose a concrete condition type from a grouped picker and configure it directly in the Inspector.

The condition model

Every concrete condition derives from Condition and implements Evaluate(EvaluationContext ctx).

The evaluation context carries the runtime references that built-in conditions inspect:

Context value	Typical meaning
Holder	The entity that owns the evaluated effect or action
Performer	The entity that applied or cast the effect, when available
EventPayload	The current trigger payload or event data

EvaluationContext also exposes TryGetPayload<T>() when a condition needs typed access to the current payload.

Many built-in conditions resolve one of these context slots before applying their actual check. For example, an entity condition may compare the holder against a payload entity, while a tag condition may inspect the resolved entity for one or more required tags.

Context contracts and payload roles

Many of the less obvious conditions are really about which contracts the current payload implements. The system does not rely on a single event-context base class. Instead, conditions look for small focused interfaces that describe what the payload can provide.

Common context contracts

Contract	Meaning
IHasEntity	Exposes the payload's primary entity
IHasTarget	Exposes the target entity of the payload
IHasPerformer	Exposes the entity that performed or caused the action
IHasVictim	Exposes the victim entity when that role exists
IHasValueChange<T>	Exposes PreviousValue, NewValue, and AbsAmount for numeric-change payloads

IHasEntity is the most important bridge contract in the framework. It represents the primary entity carried by a payload, and it is also the interface that lets many GameAction<IHasEntity> workflows accept both entity components and event payloads in a consistent way.

How ConditionTarget resolves entities

Entity-based and tag-based conditions select an entity slot through ConditionTarget:

Target slot	Resolved from
Holder	EvaluationContext.Holder
Performer	EvaluationContext.Performer
PayloadEntity	IHasEntity on the payload, or the EntityCore of a payload Component
PayloadPerformer	IHasPerformer on the payload
PayloadTarget	IHasTarget on the payload
PayloadVictim	IHasVictim on the payload

This is why some conditions appear to "just work" with certain event payloads and not with others: the payload must actually expose the requested role.

Common payloads used by built-in conditions

Several built-in event payloads already expose the contracts that the condition system expects:

Payload type	Contracts	Typical use
StatChangeInfo	IHasEntity, IHasTarget, IHasValueChange<long>	Stat-based conditions and long value-change conditions
AttributeChangeInfo	IHasEntity, IHasTarget, IHasValueChange<long>	Attribute-based conditions and long value-change conditions
EntityLevelChangedContext	IHasEntity, IHasTarget, IHasValueChange<int>	Entity level conditions and int value-change conditions

For example, StatChanged, AttributeChanged, EntityLevelUp, and EntityLevelDown payloads already expose the entity and value-change contracts needed by the related condition families.

Built-in condition families

The type picker groups the built-in condition library into several families:

Composites

Use these to combine or transform other conditions:

• AllConditions: logical AND; every child must pass, and an empty list evaluates to true
• AnyCondition: logical OR; at least one child must pass, and an empty list evaluates to false
• NoneCondition: logical NOR; no child may pass, and an empty list evaluates to true
• NotCondition: inverts a single inner condition; if the inner value is null, it evaluates to true
• AtLeastNCondition: passes when at least N child conditions pass
• AtMostNCondition: passes when at most N child conditions pass
• ExactlyNCondition: passes when exactly N child conditions pass

These are the main building blocks for condition trees that need more than one rule. AtLeastNCondition, AtMostNCondition, and ExactlyNCondition are especially useful when you want a count-based rule instead of a strict AND/OR shape.

Leaf/Constant

Simple fixed predicates:

• AlwaysTrueCondition: always passes
• AlwaysFalseCondition: never passes

These are useful as placeholders or for testing larger composite trees.

Leaf/Attr. & Stat

Conditions in this family evaluate attributes, stats, or stat/attribute-related payloads:

• AttributeThresholdCondition: resolves an entity slot, reads one attribute from that entity, and compares it against a threshold
• StatThresholdCondition: resolves an entity slot, reads one stat from that entity, and compares it against a threshold
• ChangedAttributeCondition: checks whether the current payload is an AttributeChangeInfo for a specific Attribute
• ChangedStatCondition: checks whether the current payload is a StatChangeInfo for a specific Stat

Threshold-based conditions operate on the current value stored on the resolved entity. By contrast, ChangedAttributeCondition and ChangedStatCondition do not compare numbers at all: they only verify which attribute or stat the current change payload refers to.

AttributeThresholdCondition can also work in percentage mode, where the current value is interpreted as a percentage of the attribute's configured range.

Leaf/Entity

These conditions reason about entity roles and entity relationships in the evaluation context:

• EntityReferenceCondition: compares two selected entity slots such as holder, payload entity, performer, target, or victim
• EntityLevelCondition: resolves one entity slot and compares that entity's current level against a threshold
• EntityLevelThresholdTransitionCondition: reads an int value-change payload and checks whether a level comparison became satisfied or became unsatisfied across the change
• HolderLevelCondition: a shorter holder-only version of a level comparison
• IsPerformerCondition: passes when Performer and Holder are the same entity

This family is especially useful when you need to distinguish self-targeting, compare holder and payload entity, or react only at specific level boundaries.

Some practical reading tips:

• EntityReferenceCondition is the most general entity-role matcher. It is ideal when the meaning of the rule depends on relationships such as "holder equals payload entity" or "payload target is different from performer"
• EntityLevelCondition looks at the entity's current live level, not at a before/after transition
• EntityLevelThresholdTransitionCondition is for level-change payloads and asks whether a rule changed state across the event (for example, whether level >= 10 just became true)
• HolderLevelCondition is simpler than EntityLevelCondition, but also less flexible because it cannot look at payload roles
• IsPerformerCondition is mainly useful in self-applied or self-triggered workflows

Note

PayloadEntity is often the most useful slot when working with built-in event payloads, because types such as StatChangeInfo, AttributeChangeInfo, and EntityLevelChangedContext already implement IHasEntity.

Leaf/Tag

The tag-focused family lets conditions inspect tags on resolved entities or on active modifier data:

• EntityHasTagCondition: resolves one entity slot and checks whether that entity's tags match a configured GameTagSet
• HasActiveModifierTagCondition: checks whether the holder currently has at least one active modifier whose tags match the configured set

EntityHasTagCondition supports both Any Of and All Of matching against a configured GameTagSet. HasActiveModifierTagCondition relies on IActiveModifierTagProvider, so it is mainly relevant when the holder is participating in modifier-based workflows. For the tagging workflow itself, see Game Tags.

Leaf/ValueChange

These conditions are designed for payloads that carry value-delta information through IHasValueChange<T>.

All of them read one of these projections:

• PreviousValue
• NewValue
• AbsAmount

The built-in numeric payloads are split by type:

• EntityLevelChangedContext provides IHasValueChange<int>
• StatChangeInfo and AttributeChangeInfo provide IHasValueChange<long>

Note

This is why the payloads used by built-in events such as entity level up, entity level down, stat changed, and attribute changed work naturally with the Leaf/ValueChange family: they already implement IHasValueChange<T>.

The available conditions are:

• IntValueChangeDirectionCondition: checks whether an int payload increased, decreased, or stayed the same
• IntValueChangeModuloCondition: applies a modulo rule to a projected int value
• IntValueChangeThresholdCondition: compares a projected int value against a threshold
• IntValueChangeThresholdTransitionCondition: checks whether an int threshold comparison became satisfied or unsatisfied across the change
• LongValueChangeDirectionCondition: checks whether a long payload increased, decreased, or stayed the same
• LongValueChangeModuloCondition: applies a modulo rule to a projected long value
• LongValueChangeThresholdCondition: compares a projected long value against a threshold
• LongValueChangeThresholdTransitionCondition: checks whether a long threshold comparison became satisfied or unsatisfied across the change

They are useful when the interesting rule is not the absolute final value, but the way a value changed.

This distinction matters:

• Direction conditions care only about increase, decrease, or equality
• Threshold conditions evaluate a single projected value such as NewValue >= 10
• Threshold transition conditions evaluate whether the comparison changed state between previous and new values
• Modulo conditions are useful for cyclical checks on the projected value, such as verifying that a NewValue level lands on 5, 10, 15, ... or that another projected value repeats on a fixed remainder pattern

For example, if a level changes from 9 to 10:

• IntValueChangeThresholdCondition with NewValue >= 10 passes because the new value is 10
• IntValueChangeThresholdTransitionCondition with >= 10 and Become Satisfied passes because the comparison was false before and true after

Leaf/Random

Randomized gating is provided through:

• RandomChanceCondition: passes with the configured percentage chance

This condition evaluates to true based on a configured percentage chance.

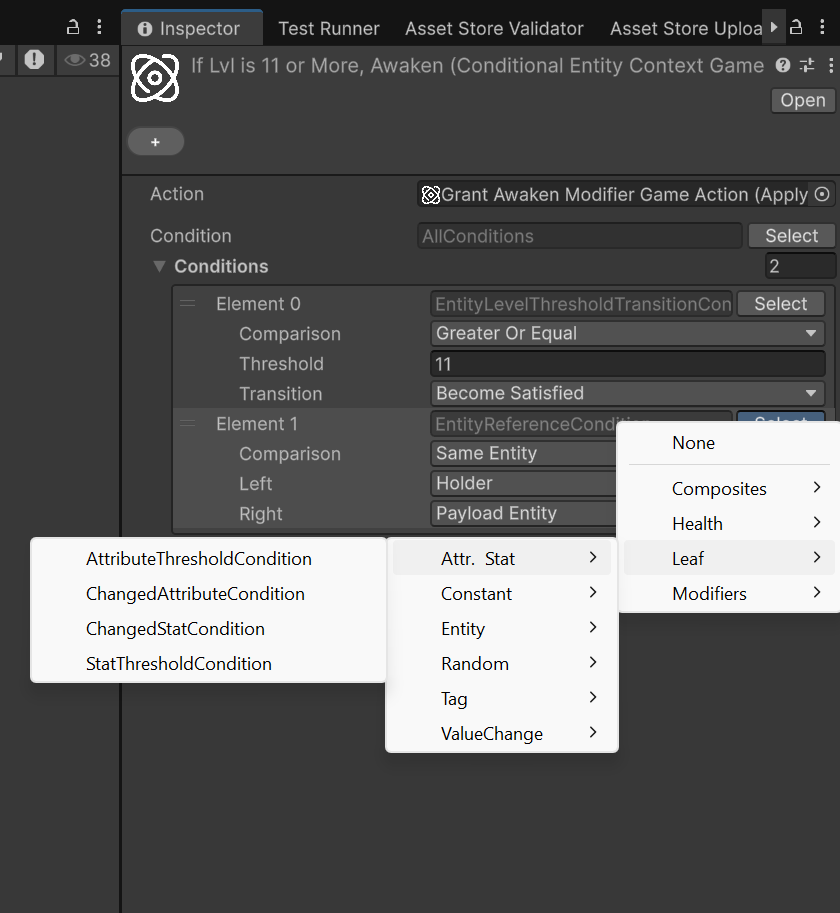

Authoring conditions in the Inspector

Because conditions are managed-reference values, the typical workflow is:

1. Locate a field that accepts a Condition
2. Open the type picker for that field
3. Choose a concrete condition from the grouped menu
4. Configure its fields, such as target entity slot, comparison mode, threshold, or required tag set
5. Wrap the root in composites if the rule needs multiple checks

Note

Conditions are authored inline, so their serialized data lives inside the object that owns the field. You do not create a standalone Condition asset first and reference it later.

Extending the system with custom conditions and triggers

The payload filter shown by reactive inspectors is metadata-driven. If you add your own Condition subclasses or your own IReactiveTrigger implementations, treat that metadata as part of the public contract of the type.

Custom Condition types

If a custom condition reads EvaluationContext.EventPayload, annotate it with one or more ConditionPayloadAttributes:

using System;
using ElectricDrill.AstraRpgFramework.Conditions;
using ElectricDrill.AstraRpgFramework.Contexts;

[Serializable]
[ConditionPayload(typeof(IHasEntity))]
[ConditionPayload(typeof(IHasPerformer))]
public sealed class PayloadActorMatchesHolderCondition : Condition
{
    public override bool Evaluate(EvaluationContext ctx)
    {
        if (!ctx.TryGetPayload<IHasEntity>(out var payload))
            return false;

        return payload.Entity == ctx.Holder;
    }
}

Use these rules:

• Add one attribute per accepted payload contract. Multiple attributes are an OR list.
• Prefer the narrowest interface or base type that the condition actually needs, such as IHasEntity or IHasValueChange<long>, instead of overfitting to one concrete payload class.
• Omit the attribute entirely only for payload-agnostic conditions. A condition with no ConditionPayloadAttribute is treated as compatible with any trigger.
• If a condition requires payload data and you forget the attribute, the condition may still appear in filtered pickers because the editor has no metadata proving otherwise.

Custom IReactiveTrigger types

Custom triggers must expose the payload contract through IReactiveTrigger.PayloadType:

using System;
using ElectricDrill.AstraRpgFramework.Triggers;

[Serializable]
public sealed class CustomStatusTrigger : IReactiveTrigger
{
    public Type PayloadType => typeof(CustomStatusEvent);

    // Subscribe / Unsubscribe / EventSource omitted.
}

Best practices:

• Return typeof(void) for parameterless triggers.
• Return the type that subscribers can safely assume at runtime. If the trigger is conceptually based on an interface contract, expose that interface instead of an arbitrary concrete implementation.
• Do not use typeof(object) unless the payload is genuinely unconstrained, because it disables meaningful filtering.

When both sides provide accurate metadata, the framework can filter incompatible condition types in the Inspector and warn about already-authored invalid trees before play mode.

For custom editor wiring that connects a trigger field to a condition field and enables this filtering automatically, see Payload-aware condition fields in custom editors.

Conditional game actions

The most direct built-in use of the system is ConditionalGameAction<TContext>, which wraps another GameAction<TContext> with an optional guard condition.

• Astra RPG Framework/Game Actions/Context: Entity/Conditional
• Astra RPG Framework/Game Actions/Context: Component/Conditional

If the configured condition evaluates to false, the nested action is skipped. If the condition field is left empty, the action behaves as always allowed.

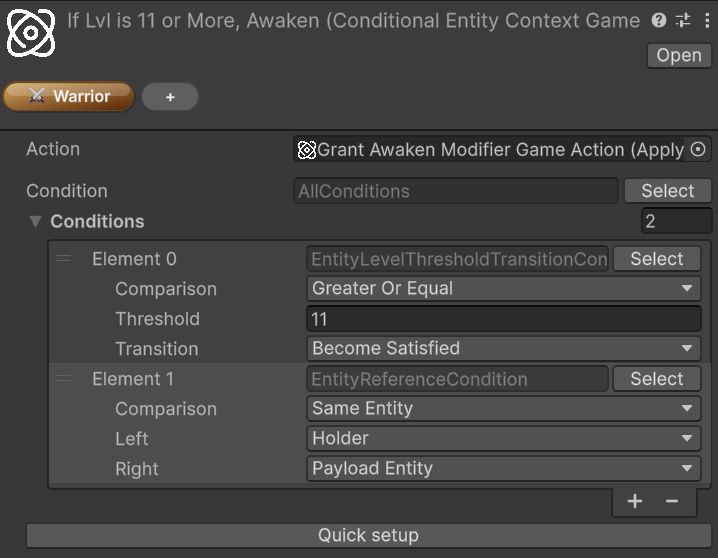

The custom inspector for conditional actions also exposes a Quick setup row below the condition field. This is meant to speed up structural edits to the root condition tree:

• Wrap the current root in AllConditions
• Wrap the current root in AnyCondition
• Wrap the current root in NotCondition
• Unwrap the current root when the current shape supports it

For the broader GameAction workflow, see Game Actions.

Practical uses

Conditions are especially useful for:

• Gating a GameAction so it only runs for certain entities or payload states
• Comparing holder, performer, and payload entity roles without writing custom glue code
• Reacting only when an attribute or stat crosses a threshold
• Filtering tag-aware behavior through GameTagSet matching
• Adding probabilistic behavior through a reusable chance-based condition

The main strength of the system is composition. Instead of hardcoding special-case checks into every consumer, you can assemble reusable condition trees directly in the Inspector and keep the rule logic close to the data that depends on it.
