Experience Collection

Experience collection is the mechanism through which entities earn experience points when they contribute to enemy kills (or entities deaths in general in some cases). In Astra Health, the system revolves around two actors: the collector, the entity that receives experience, and the victim, the entity that dies and provides it.

When a victim dies, its EntityHealth raises the Global Entity Died event. Any ExpCollector component listening to that event evaluates its configured strategy to determine whether XP should be awarded — and if so, extracts the XP amount from the victim and forwards it to the collector's EntityLevel. The entire validation and collection logic lives inside a dedicated Experience Collection Strategy asset, making it straightforward to swap, extend, or compose strategies without touching any component code.

Important

Experience collection relies on the Global Entity Died event configured in your AstraHealthConfigSO. Ensure this event is assigned before entering Play Mode — without it, ExpCollector will never be notified of kills. See Global Entity Died Event for details.

Prerequisites

Before setting up experience collection, ensure the following are in place.

On each victim entity:

• The victim must expose experience through an ExpSource component. The Astra Framework provides a concrete ExpSource : MonoBehaviour that stores the XP amount and a harvested flag. Attach this component to any entity that should provide XP when it dies, and configure the amount accordingly. Refer to the Framework documentation for details: https://electricdrill.github.io/AstraRpgFrameworkDocs/MD/workflows.html#exp-source

On the collector entity:

• The collector must be an entity. Therefore, it must have the EntityCore component.

Setting Up the Exp Collector

ExpCollector is the component that bridges the global death event and the configured strategy. Add it to any entity that should receive XP from kills.

ExpCollector automatically subscribes to the Global Entity Died Event configured in AstraHealthConfigSO — no manual event wiring is required. Whenever any entity dies, the component evaluates its configured strategy to determine whether XP should be awarded.

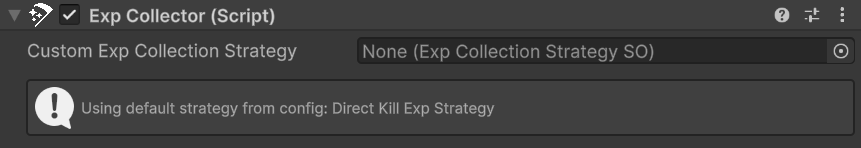

The following image shows the ExpCollector inspector:

Custom Exp Collection Strategy is the optional per-entity override. Assign a strategy here to give this specific collector its own behavior — for example, a boss that earns XP only from specific kill types, or a trap system with its own award logic. When left empty, the collector falls back to the project-wide default configured in AstraHealthConfigSO (see Default Strategy in Package Configuration).

Inspector Status Box

The custom ExpCollector inspector includes a status indicator that shows at a glance whether an active strategy is in place:

• Info — "Using custom strategy: [name]": a Custom Exp Collection Strategy is assigned on this component.
• Info — "Using default strategy from config: [name]": no custom strategy is assigned, but a default is found in the AstraHealthConfigSO.
• Warning — "No AstraRpgHealthConfig found…": no package configuration asset is in scope. See Package Configuration for setup details.
• Warning — "No default experience collection strategy configured in AstraRpgHealthConfig…": a configuration asset exists but no Default Exp Collection Strategy is set on it.

Default Strategy in Package Configuration

Collectors without a Custom Exp Collection Strategy fall back to the Default Exp Collection Strategy set in the AstraHealthConfigSO (see Package Configuration - Experience). Configuring this field once means every bare ExpCollector in the project inherits the same behavior without needing an explicit assignment on each one.

Strategy resolution at runtime follows this order:

1. Custom strategy assigned on the ExpCollector → used directly.
2. No custom strategy → default strategy from AstraHealthConfigSO → used.
3. No custom strategy and no config or default → a warning is logged and no XP is collected.

Built-in Strategies

Three strategies are provided out of the box. Each is a ScriptableObject asset you create, configure, and assign to an ExpCollector or set as the project default in AstraHealthConfigSO.

Direct Kill

Relative path: Astra Health -> Exp Collection Strategies -> Direct Kill

DirectKillExpStrategySO is the most straightforward strategy: the collector receives XP only if it personally dealt the finishing blow. This is the natural choice for games where XP belongs exclusively to the entity that secured the kill.

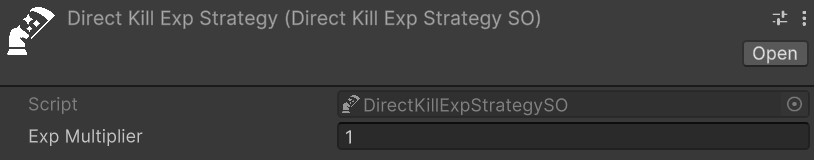

The following image shows a DirectKillExpStrategySO in the inspector:

• Exp Multiplier: a float multiplier applied to the victim's base XP amount (default: 1.0). Values greater than 1 grant a bonus — for example, 2.0 awards double XP for personal kills.

For XP to be awarded, all of the following must hold:

• The entity that dealt the final blow is the collector itself.
• The victim has an ExpSource component.
• The victim's ExpSource has not already been harvested by another collector.

The harvested check ensures that a single kill cannot be claimed twice when multiple ExpCollector entities use non-harvested-dependent strategies.

Damage Source Kill

Relative path: Astra Health -> Exp Collection Strategies -> Damage Source Kill

DamageSourceKillExpStrategySO grants XP to the collector whenever a kill is delivered by a specific DamageSourceSO, regardless of which entity caused it. This is the right strategy for scenarios where the cause of death — rather than the attacker — determines who is rewarded.

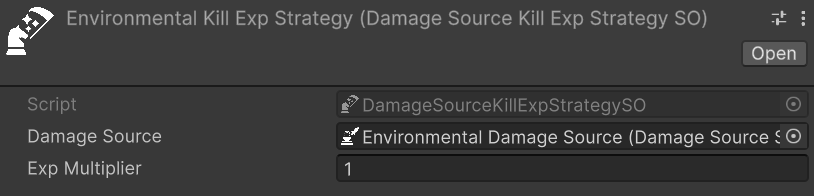

The following image shows a DamageSourceKillExpStrategySO in the inspector:

• Damage Source (required): the DamageSourceSO whose lethal hits trigger XP collection on this collector.
• Exp Multiplier: float multiplier on the victim's base XP (default: 1.0).

Let's look at a classic example from the Souls-like genre. In those games, the player still earns souls when an enemy falls off a ledge and dies, even though the player did not deliver the final blow. To replicate this:

• Create a DamageSourceSO named "Environmental" and use it for all fall damage applied to enemies.
• Create a DamageSourceKillExpStrategySO, set Damage Source to "Environmental", and assign it to the player's ExpCollector.

Now whenever an enemy is killed by environmental damage, the player's collector fires and the player earns the XP.

Note

DamageSourceKillExpStrategySO does not check whether the victim's ExpSource has been harvested. If multiple ExpCollector entities use a strategy configured with the same DamageSourceSO, each of them receives XP independently when that source kills a victim. This is intentional for scenarios like the one above, but factor it into your design when multiple collectors may be active simultaneously.

First Match Composite

Relative path: Astra Health -> Exp Collection Strategies -> First Match

With the previous strategies, you are bound to a single condition for XP collection: either the collector must deal the killing blow, or the kill must come from a specific damage source. What if you want a more complex setup where multiple conditions can grant XP, each with its own priority?

FirstMatchExpStrategySO is a composite strategy that holds an ordered list of sub-strategies. It tries each in sequence and awards XP through the first one that succeeds, leaving the rest unevaluated.

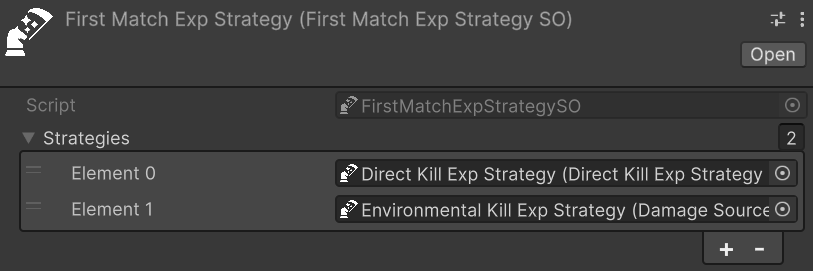

The following image shows a FirstMatchExpStrategySO in the inspector:

• Strategies: the ordered list of ExpCollectionStrategySO assets to evaluate.

This is useful when an entity should earn XP under different conditions, each with a clear priority. For example:

• Try DirectKillExpStrategySO first — reward if the entity delivered the finishing blow.
• Fall back to DamageSourceKillExpStrategySO — reward if the kill came from a specific environmental source.

Note

Only the first matching sub-strategy collects XP. Once a strategy succeeds, the remaining entries in the list are skipped.

Custom Strategies

To implement experience collection logic beyond what the built-in strategies offer, extend ExpCollectionStrategySO. The class uses the Template Method pattern: TryCollectExp orchestrates the entire flow, and the virtual and abstract methods are the designated extension points.

The table below lists the available override points:

Method	Type	Purpose
Validate	abstract	Determine whether XP should be collected for this event. Returns a multiplier out parameter alongside the bool result.
CollectExp	virtual	Perform the actual collection: calculate the amount, call AddExp, and mark the source as harvested. Override for behaviors like distributing XP across a party.
CalculateExpAmount	virtual	Compute the final XP amount from the source and the multiplier. Override to change the formula.
TryGetExpSource	virtual	Extract an IExpSource from the victim. Override if experience sources are not standard MonoBehaviour components on the victim's GameObject.
TryCollectExp	virtual	The full template method. Override for complete control over the collection flow, as FirstMatchExpStrategySO does.

For most custom strategies, overriding Validate is sufficient: implement your conditions, set the multiplier, and return true or false. Override CollectExp only when the collection action itself must differ — for example, to split the XP reward across multiple entities simultaneously.

For more information about the API and extension points, refer to the ExpCollectionStrategySO API documentation.
